| Place of Origin: | China |
| Brand Name: | ForeQuant |
| Certification: | ISO CE |
| Model Number: | F4 F6 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing with safe trans carton |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 1000 sets per year |
| Block Capacity: | 96 Samples | Sample Volume: | 1-50 Ul |
|---|---|---|---|
| Heating Method: | Peltier | Max Ramp Rate: | 6 ℃/s |
| Temperature Setting Range: | 4-100 ℃ | Product Name: | PCR System |
| High Light: | peltier qpcr thermal cycler,F4 fluorescence quantitative pcr detection system,fluorescence quantitative pcr detection system |
||

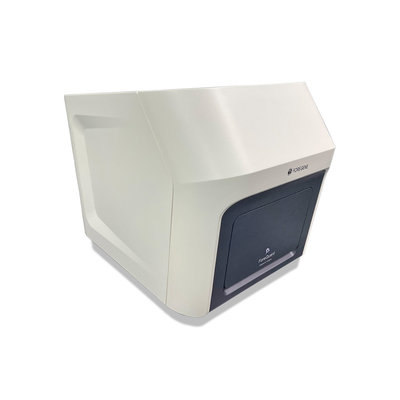

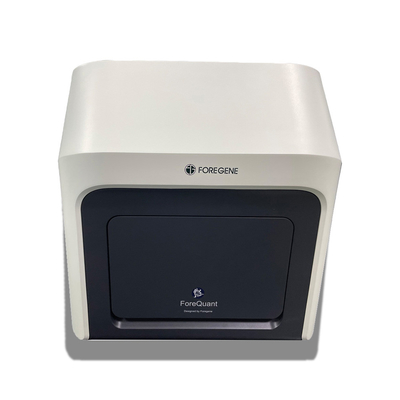

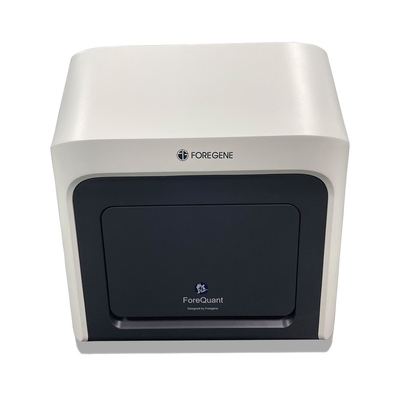

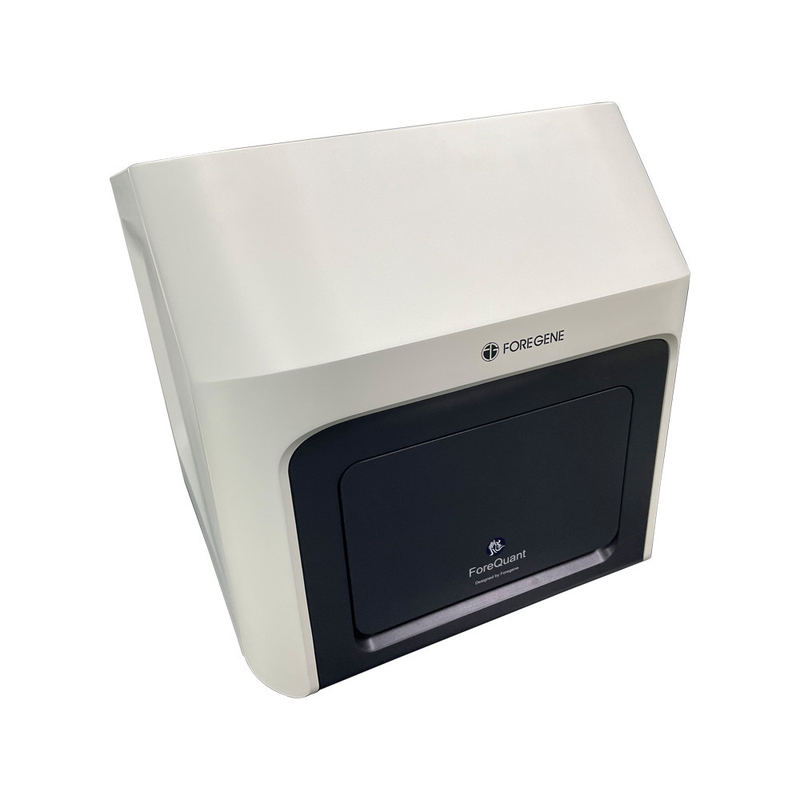

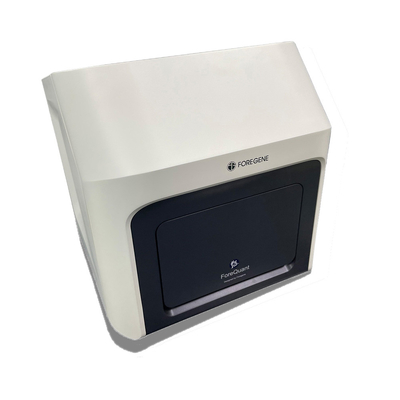

F4 Real Time Fluorescence Quantitative PCR System For Science Research QPCR Test
Designed by FOREGENE
Quick details:
Qualified
Precise
Creative
Reliable
Description:
The Series of Foregene PCR Amplifier is named “SUI” ,
who is the inventor of fire in Chinese ancient time . The invention of the fire is a important mark in Chinese ancient culture history .“SUI” Series instruments mean “exploration and discovery, decryption of the unknown, penetration of darkness".
ForeQuant F4 and ForeQuant F6 Real-Time PCR System are used to run real-time fluorescence PCR experiments (Real-time PCR) and to analyze the experimental data. the instruments are operated in the laboratory, in conjunction with the corresponding reagents, for rapid and accurate quantitative and qualitative detection of target nucleic acids from human samples (e.g., blood, oral swabs, nasopharyngeal swabs, body fluids, etc.) or other analytes in the patient's body, or for melting curves, genotype analysis.
Technological Innovation
Innovative Optical Design:
Higher Sensitivity, Less Cross-talk
As for the core detector, the ForeQuant system further improves the detection sensitivity by
using Fresnel lens combined with large area PMT, a patented new optical detection system.
High quality PMT is used to ensure the detection sensitivity of the system. Meanwhile, it combines the advantages of thin Fresnel lens with short focal length to make the detector closer to the sample, thus effectively reducing the loss of optical signal as well as
optical cross-talk between samples, and Þnally improves the detection sensitivity. Further, the matching of high frequency LED and PMT makes the detection time of each well and each ßuorescent channel very short, so that effectively reducing ßuorescence quenching
The state of the art optics shuttle
Adopts the time-resolved well-by-well scanning technology. Through the setting of interlaced scanning heads, the problem of cross-talk between wells is significantly reduced from the perspective of spatial distribution. Meanwhile, high-precision scanning heads are used to detect signals of different fluorescent channels in different wells in time sequence (time-resolved), thus eliminating the cross-talk in principle.
High Sensitivity Less Cross-talk Fast Scan No Edge Effects Maintenance-free
Outstanding Thermal Cycler
QPCR in the proven 0.1 ml format with 96 wells Precise temperature control of ± 0.2 °C across the entire sample block
Innovative thermal block with outstanding ramping rates of up to 6 °C/s
Gradient function over 12 columns with a 36 °C spread
Impressive performance you can trust to generate high-quality data
Excellent reproducibility and 10-log dynamic range
Precise quantification with 1.33-fold discrimination True
Five-Target Multiplexing
Intelligent analysis
ForeQuant
User-friendly and clearly structured
Intuitive navigation and customizable settings
Integrated analysis algorithms with automatic analysis
Comprehensive analysis modules for multiple applica
License-free,Free updates
Technical Parameter
Storage and transportation environment
Temperature:-20℃ ~ 55℃,the instrument packaging in the transport box；
Humidity:≤85% RH
