Foregene Co., Ltd.
CHINA FOREGENE,WORLD'S FOREGENE!
 |
| Place of Origin: | China |
| Brand Name: | ForeQuant |
| Certification: | ISO CE |
| Model Number: | F6 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing with safe trans carton |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 1000 sets per year |
| Product Name: | Real-Time PCR System F6 QPCR Machine | Block Capacity: | 96 Wells |
|---|---|---|---|
| Sample Volume: | 10-50 Ul | Temperature Control Mode: | Temperature Control Module |
| Heat Cycle: | Peltier Semiconductor | Temperature Setting Range: | 4-100 ℃ |
| High Light: | 96 wells RT qPCR Machine,96 wells F6 qPCR Machine,Real Time PCR system F6 qPCR Machine |
||

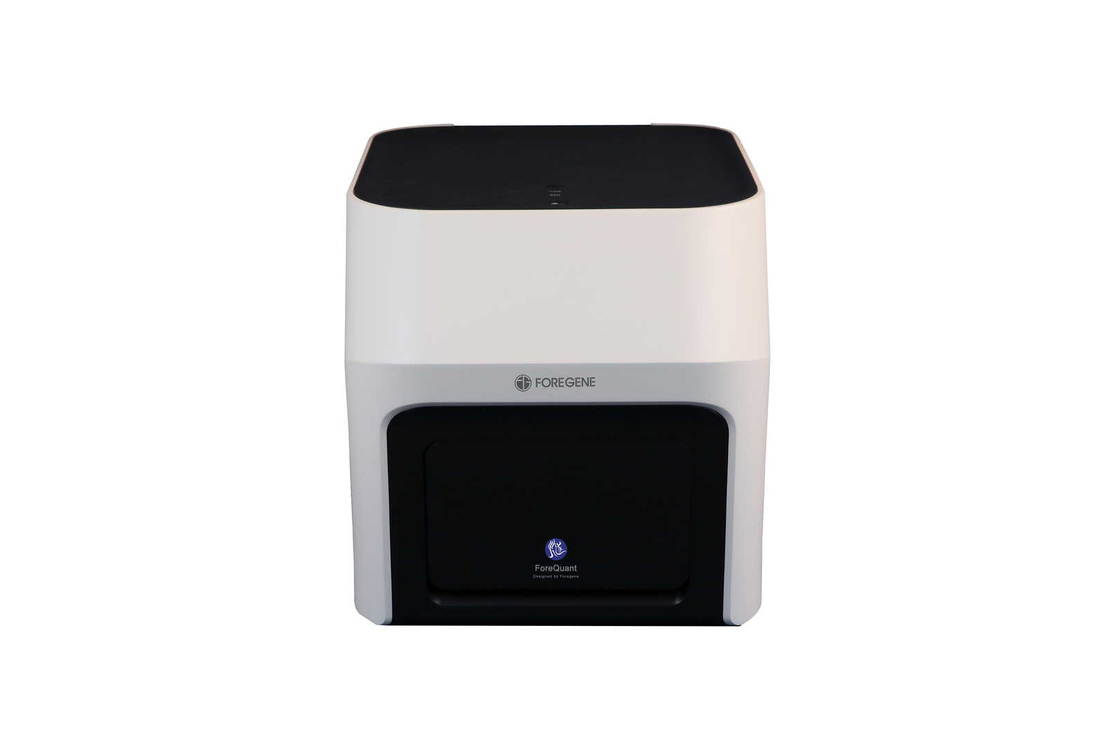

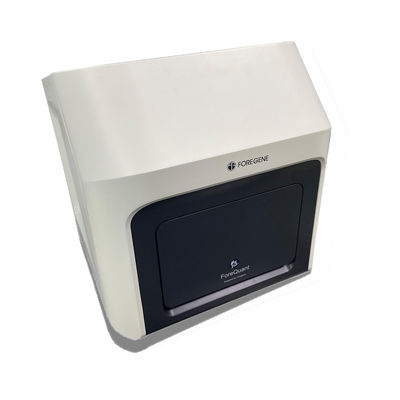

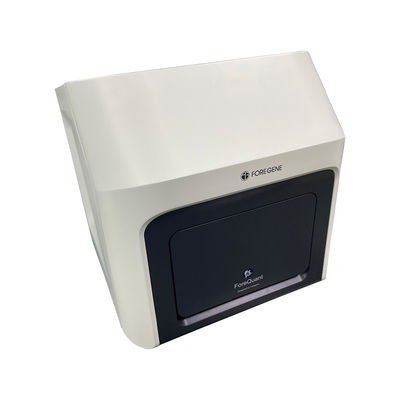

Real-Time PCR system F6 qPCR Machine For Science Research QPCR Test
Descripstion:
Real-Time PCR system F6 qPCR Machine is the essence of the development of quantitative PCR technology from Foregene,the world's first time-resolved real-time fluorescence quantification PCR system created by an international senior technical team. Based on Fresnel lens new optical path system , patented time-resolved information acquisition technology and unique temperature control technology enable ForeQuant to have higher detection sensitivity, greater temperature accuracy and uniformity of temperature control, more convenient operation procedures, and more complete analysis functions. At the same time, based on the global vision,the product design concept and manufacturing process impart ForeQuant the excellent quality of the international standard.
Features:
- Innovative optical detection system-higher sensitivity.
- Time-resolved signal acquisition technology-less optical path crosstalk.
- The unique hollow is the temperature control module-more stable and fast thermal cycle control.
- Humanized and fully functional software-more comprehensive application, easier operation.
- High cost performance-newer technology, more reasonable price.
- Install and use-no need to debug and correct, lower maintenance cost.
- Comprehensive after-sales service-a more trustworthy partner.
Conventional Parameters:
| Instrument specifications |
Size:520 mm(L) × 350 mm (W) × 370 mm (H)； Weight:25 kg |
| Packing specifications |
Size:710 mm(L) × 540 mm (W) × 580 mm (H)； Gross Weight:36 kg |
| Power supply specification |
power supply voltage:AC 230 V Frequency:50 Hz； Power:750 w |
| Communication specifications | USB ports |
| Use ambient |
Temperature:10℃ ~ 30℃； Humidity:≤85% RH no condensation； Atmospheric pressure:85.0 kPa ~ 106.0 kPa； Altitude:< 2000m |
| Storage and transportation environment |
Temperature:-20℃ ~ 55℃,the instrument packaging in the transport box； Humidity:≤85% RH |
| Running noise | Maximum noise when running instrument does not exceed 60dB (A) |
Instrument Technical Parameters:
| Thermal parameters | ||
| Heat cycle |
Peltier semiconductor |
|
| Temperature control mode |
Temperature control module |
|
| Maximum ramp rate | 3.6 ℃/s | |
| Temperature accuracy | ± 0.2 °C | |
| Temperature uniformity | ± 0.2 ℃ | |
| Optical parameters | ||
| Excitation source | Single color LED | |
| Detection device | High sensitivity MPPC(silicon photomultiplier tube) | |
| Fluorescent channel number | 6 channels(ForeQuant F6) | |
| Applicable to fluorescent | Channel 1 | FAM/SYBR Green etc |
| Channel 2 | VIC/JOE/HEX/TET etc | |
| Channel 3 | ROX/Texas Red etc | |
| Channel 4 | NED/TAMRA/Cy3 etc | |
| Channel 5 | Cy5 etc | |
| Channel 6 | FAM/SYBR Green etc | |
| Detection parameters | ||
| Sample size | 96 wells | |
| Sample volume | 10-50 μl | |
| Repeatability of fluorescence intensity detection | CV ≤3% | |
| Detection of fluorescence intensity | CV ≤5% | |
| Sample repeatability | CV ≤ 3% | |
| Linear fluorescence intensity detection | A linear regression coefficient │r│≥0.990 in 5 concentration gradients | |
| Sample linear correlation | A linear regression coefficient│r│≥0.980 in 5 concentration gradients | |
Software Features:
- Software interface: wizard interface, intuitive sample plate layout and program settings, easy to use operation editing.
- Software functions: absolute quantitative, relative quantitative, genotyping and other analytical functions to meet the requirements of a variety of experiments.
- Language Support: English or Chinese.
- Data transmission: data transmission between the instrument and the main control computer; the instrument can transmit the experimental data to the connected main control computer in real time during the experiment under the control of the computer.
- Data storage: instruments can store ≥1000 experimental setup files/experimental data files.
- Overlong program settings: Each stage may include less than 100 steps and a large number of cycles less than 10.
Storage and transportation environment:
Temperature: -20℃ ~ 55℃,the instrument packaging in the transport box；
Humidity: ≤85% RH
