Foregene Co., Ltd.
CHINA FOREGENE,WORLD'S FOREGENE!
 |
| Place of Origin: | China |
| Brand Name: | ForeQuant |
| Certification: | ISO CE |
| Model Number: | F4 F6 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Packing with safe trans carton |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, D/P, T/T |
| Supply Ability: | 1000 sets per year |
| Block Capacity: | 96 Samples | Sample Volume: | 1-50 Ul |
|---|---|---|---|
| Heating Method: | Peltier | Max Ramp Rate: | 6 ℃/s |
| Temperature Setting Range: | 4-100 ℃ | Product Name: | PCR System |
| High Light: | 50ul fluorescence quantitative pcr detection system,qPCR Thermal Cycler 1ul,50ul qPCR Thermal Cycler |
||

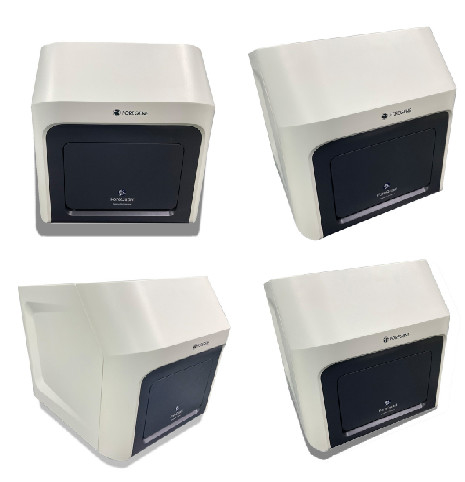

F4 Real Time Fluorescence Quantitative PCR System For Science Research QPCR Test
Designed by FOREGENE
Quick details:
Qualified
Precise
Creative
Reliable
Description:
The Series of Foregene PCR Amplifier is named “SUI” ,
SUI" series instruments mean "explore and discover, decipher the unknown, penetrate the darkness".
ForeQuant F4 and ForeQuant F6 real-time PCR systems are used to perform real-time fluorescent PCR experiments (real-time PCR) and analyze experimental data. These instruments are operated in laboratories with corresponding reagents for the rapid and accurate quantitative and qualitative detection of targets from human samples (e.g. blood, buccal swabs, nasopharyngeal swabs, body fluids, etc.) or other analytes in patients Nucleic acid, or for melting curve, genotype analysis.
Technological Innovation
Innovative Optical Design:
Higher Sensitivity, Less Cross-talk
As for the core detectors, the ForeQuant system further improves detection sensitivity by
Using a Fresnel lens combined with a large area PMT, this is a new patented optical inspection system.
High-quality PMT is used to ensure the detection sensitivity of the system. At the same time, it combines the advantages of thin Fresnel lens and short focal length to make the detector closer to the sample, thus effectively reducing the loss of optical signals
Optical crosstalk between samples and ultimately increased detection sensitivity. In addition, the matching of high-frequency LEDs and PMTs enables very short detection times for each well and each ß fluorescence channel, thereby effectively reducing ß; fluorescence quenching
The state of the art optics shuttle
Adopts the time-resolved well-by-well scanning technology. Through the setting of interlaced scanning heads, the problem of cross-talk between wells is significantly reduced from the perspective of spatial distribution. Meanwhile, high-precision scanning heads are used to detect signals of different fluorescent channels in different wells in time sequence (time-resolved), thus eliminating the cross-talk in principle.
High Sensitivity Less Cross-talk Fast Scan No Edge Effects Maintenance-free
Outstanding Thermal Cycler
QPCR in the proven 0.1 ml format with 96 wells Precise temperature control of ± 0.2 °C across the entire sample block
Innovative thermal block with outstanding ramping rates of up to 6 °C/s
Gradient function over 12 columns with a 36 °C spread
Impressive performance you can trust to generate high-quality data
Excellent reproducibility and 10-log dynamic range
Precise quantification with 1.33-fold discrimination True
Five-Target Multiplexing
Intelligent analysis
ForeQuant
User-friendly and clearly structured
Intuitive navigation and customizable settings
Integrated analysis algorithms with automatic analysis
Comprehensive analysis modules for multiple applica
License-free,Free updates
Technical Parameter
Storage and transportation environment
Temperature:-20℃ ~ 55℃,the instrument packaging in the transport box；
Humidity:≤85% RH
