| Place of Origin: | China |
| Brand Name: | ForeQuant |
| Certification: | ISO9001 ISO13485 CE |
| Model Number: | SF 2 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | USD 7500-8000 per set |
| Packaging Details: | Packing with safe trans carton |
| Delivery Time: | 5-8 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000 sets per year |
| Material: | Aluminium Alloy Housing | Color: | Yellow |
|---|---|---|---|
| Power: | 220V/optional 12 Volt 10A Mobile Power Supply | Sample Capacity: | 2x8 Wells(0.2ml Single Tube,8 Strip Tube) |
| Detection Systems: | High Sensitivity MPCC | Maximum Heating And Cooling Rate: | 8°C/S |
| Detection Time: | With Single-copy Gene, Can Distinguish 1.33-fold Copy Number Difference In Single-plex Reaction | Product Name: | MINI PCR Machine |
| High Light: | 12 volt 10A MINI PCR Machine,2x8 wells MINI PCR Machine,2x8 wells RT qPCR Machine |
||

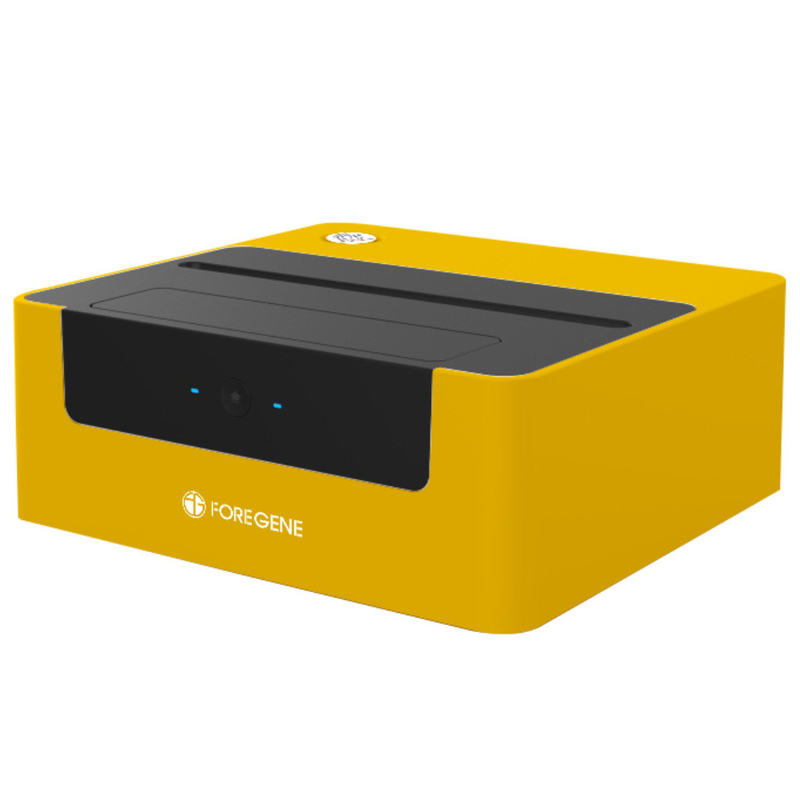

Samll Size Fast Portable Quantitative MINI PCR Machine For CRO Company University Lab Use
Quick Detail:
Description:
Real-time fluorescence quantitative pcr is more and more widely used as an important technology in scientific research and molecular diagnosis.In order to meet the needs of fast, timely detection and small flux scientific research and teaching. Foregene introduced this ultra-fast portable fluorescent quantitative pcr instrument system ForeQuant SF series, use of innovative circulating liquid refrigeration technology combined with the Peltier temperature control technology, simple operate software, lightweight and compact body, can be free from site constraints, quick and accurate completion of quantitative pcr-related applications.
Product Composition:
Fast access to test results on-site timely detection of important application needs, to meet such practical needs, ForeQuant SF series special use of the innovative liquid circulation refrigeration technology, combined with unique temperature control technology,in order to ensure all the uniformity and accurate temperature control performance at the same time, to achieve the purpose of ultra-fast temperature change, the maximum temperature rate is 8 degrees per second. After repeated testing, in the same experimental design and operation conditions, compared to the generic 96-well quantitative pcr machien,the time taken for the experiment can be reduced by half.
Outstanding Performance
High repeatability
High sensitivity
Multiple detection
High resolution
Easy use software:
Specifications:
| Product Name | Mini PCR Machine | ||
|
Temperature control |
Optical inspection |
||
|
Sample capacity |
2x8 wells(0.2ml single tube,8 strip tube) |
Excitation light source |
Monochromatic high-efficiency LED |
|
Reaction volume |
10-50 ul |
Detection Systems |
High sensitivity MPCC |
|
Thermal cycle |
Peltier |
Detection mode |
Ultra-fast hole-by-hole scanning |
|
Cooling mode |
Liquid circulation refrigeration |
Fluorescent channels |
Standard two channels(FAM/VIC), optional four channels(FAM/VIC/ROX/CY5) |
|
Maximum heating and cooling rate |
8°C/S |
Detection time |
＜ 30 mins (combined with FOREGENE fast kit) |
|
Temperature accuracy |
±0.2°C |
Sensitivity |
With single-copy gene, can distinguish 1.33-fold copy number difference in single-plex reaction |
|
Temperature uniformity |
±0.2°C @60°C 土 0.2℃ @95℃ |
Dynamic Range |
10 orders of magnitude |
|
Hardware and other parameters |
|||
|
Noise |
<50 dB |
Size |
205x190x98mm (LxWxH) |
|
Power supply |
220V/optional 12 volt 10A mobile power supply |
Software systems |
Windows |
|
Software functions |
|||
|
Amplification curves, absolute quantitative, qualitative analysis, dissolved curves |
|||
Features&advantages:
-Ultra fast: Super fast temperature ramp rate,which makes qPCR tests been done within 30 minutes to ensure getting results quickly on site.
-Portable: Small and portable, fully meet the on-site instantaneous detection demands of disease control, customs, commodity inspection, environmental protection,etc.
-Reliable:Accurate temperature control and detection technology, with the same perfor- mance as the desktop qPCR, ensuring the reliability of the experimental results.
Application:
-Disease Prevention and Control
-Food Safety
-Medical Diagnosis
-Scientific Research
-The customs
-Environmental Protection
-Commodity Inspection
-Other timely on-site testing.
Storage and transportation environment:
Temperature:-20℃ ~ 55℃,the instrument packaging in the transport box；
Humidity:≤85% RH
