Foregene Co., Ltd.
CHINA FOREGENE,WORLD'S FOREGENE!
 |
| Place of Origin: | China |
| Brand Name: | ForeAmp |
| Certification: | CE ISO |
| Model Number: | SN696 |
| Minimum Order Quantity: | 1 sets |
|---|---|
| Price: | 3000 |
| Packaging Details: | Packing in safe carton box |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 2000 sets per year |
| Product Name: | ForeAmp-SN696 China Laboratory PCR Machines Polymerase Chain Reaction Thermal Cycler | Material: | Die-casting Aluminum Housing |
|---|---|---|---|
| Input Voltage: | AC100~240V Input Options | Operating System: | Android |
| WIFI Module: | Built-in WIFI Module | Screen: | 10.1 Inch,1024x600 Pels LED |
| Cover System: | Press Rod Type Heat Cover | Certificates: | CE ISO9001 |
| Heating System: | Peltier Heating Units | Application: | Lab |
| High Light: | Android Laboratory PCR machines,Laboratory PCR machines CE ISO,Polymerase Chain Reaction Thermal Cycler |
||

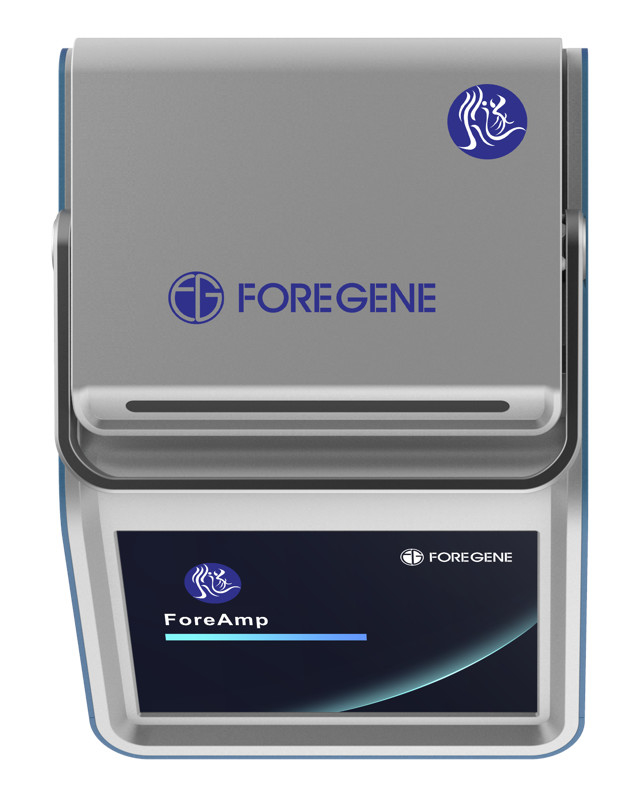

ForeAmp-SN696 China Laboratory PCR machines Polymerase Chain Reaction Thermal Cycler
Description:

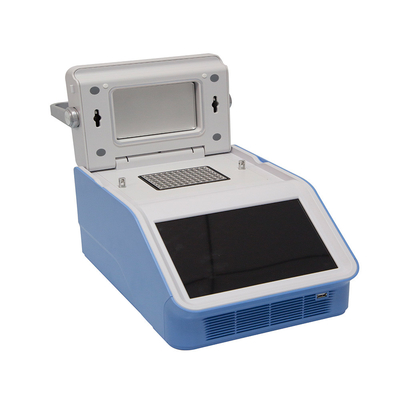

ForeAmp series thermal cycler has Android operation system and 10 . 1 inch capacitive touch screen . Operation is very smooth and simple . Air channel is in front and back and it allows machine placed side by side . Self-adapting pressure hot lid makes closing lid and tightening lid in one step . It has long service life peltier heating units and max . ramping rate is 8℃/s and cycle times is more than 1000,000 . Wifi unit is built in and user can control many units of PCR through mobile App .
Feature
♦The running program and left time can be displayed in real time , allow to edit file when program is running .
♦ One-click quick incubation function can meet experiment’s needs such as denaturation , enzyme cutting/enzyme- link and ELISA
♦ Highheatingandcoolingrate,max.Rampingrate8℃/s,can saveyourprecioustime .
♦ Self-adaptingpressurehotlidmakesclosinglidand tighteninglidinonestep.
♦ Airchannelisinfrontandbackanditallowsmachineplaced sidebyside .
♦IthasAndroidoperationsystemand10 . 1inchcapacitive touchscreen.Ithasgraphicalmenunavigationinterfaceand operationisverysimple .
♦Built- in11standardprogramfiletemplate,canquicklyedit
therequiredfiles .
Specification
|
Model No. |
ForeAmp- |
ForeAmp- |
ForeAmp-SN695(384) |
ForeAmpe-SD696 |
ForeAmp- |
||
|
Capacity |
96×0.2ml |
96×0.2ml |
384 well |
6×16×0.2ml |
96×0.2ml |
||
|
Tube |
0.2ml tube, 8 strips, |
0.2ml tube, 8 strips, |
384 well plate |
0.2ml tube, 8 strips, |
|||
|
Temperature Range |
0-105℃ |
||||||
|
MAX. Ramp Rate |
5℃/s |
6℃/s |
5℃/s |
6℃/s |
8℃/s |
||
|
Uniformity |
≤±0.2℃ |
||||||
|
Accuracy |
≤±0.1℃ |
||||||
|
Display Resolution |
0.1℃ |
||||||
|
Temperature Control |
BlockTube |
||||||
|
|
0.1-5℃ |
0.1-6℃ |
0.1-5℃ |
0.1-6℃ |
0.1-8℃ |
||
|
Gradient Temp. Range |
30-105℃ |
|
|||||
|
Gradient Type |
Nolinear Gradient |
Dynamic Gradient |
Two-Dimensional Gradient |
||||
|
Gradient Spread |
1-42℃ |
six zone,each zone is 0.1-5℃. |
Horizontal:1-30℃ |
||||
|
Hot Lid Temperature |
30-115℃ |
||||||
|
Number of Programs |
20000 +(USB FLASH) |
||||||
|
Max. No. of Step |
30 |
40 |
|||||
|
Max. No. of Cycle |
100 |
||||||
|
Time Increment/Decrement |
1 Sec - 600 Sec |
||||||
|
Temp. Increment/Decrement |
0.1-10.0℃ |
||||||
|
Pause Function |
Yes |
||||||
|
Auto Data Protection |
Yes |
||||||
|
Hold at 4℃ |
Forever |
||||||
|
Touchdown Function |
Yes |
||||||
|
Long PCR Function |
Yes |
||||||
|
Language |
English |
||||||
|
Computer Software |
Yes |
||||||
|
Mobile phone APP |
Yes |
||||||
|
LCD |
10.1 inch,1024×600 pels |
||||||
|
Communication |
USB2.0 , WIFI |
||||||
|
Dimensions |
385mm× 270mm× 255mm (L×W×H) |
||||||
|
Weight |
10kg |
10kg |
17kg |
||||
|
Power Supply |
100-240VAC , |
100-240VAC , |
100-240VAC , |
||||
Technical characteristics:
1. Heating mode: three-dimensional film heating technology
2. Refrigeration technology: a new generation of "peltier" effect "semiconductor heat pump refrigeration"
3. Temperature control and management: 16-bit microcomputer intelligent type
4. DTC gene amplification instrument is mainly composed of shell, temperature-variable reaction chamber, cooling system, heating system, refrigeration system, electronic control system, power supply system, man-machine interface and other parts.
5. Stand-alone operation, it can also be used online with a computer, and the temperature change curve can be visually displayed through the data line.
6. Wide temperature range, in addition to basic functions, it also has various enhanced functions such as power failure protection, long-term high and low temperature treatment, low temperature cultivation, and circulating sleeve circulation. It can successfully include scientific research, clinical, user reagents, imported reagents, qualitative or quantitative, etc. PCR experiments required by various conditions.
