Foregene Co., Ltd.
CHINA FOREGENE,WORLD'S FOREGENE!
 |
| Place of Origin: | China |
| Brand Name: | ForeAmp |
| Certification: | CE ISO |
| Model Number: | SN695 SN696 SD696 SD698 |
| Minimum Order Quantity: | 1 sets |
|---|---|
| Price: | 3000 |
| Packaging Details: | Packing in safe carton box |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 2000 sets per year |
| Product Name: | Thermal Cycler Pcr Machines | Material: | Die-casting Aluminum Housing |
|---|---|---|---|
| Input Voltage: | AC100~240V Input Options | Operating System: | Android |
| WIFI Module: | Built-in WIFI Module | Screen: | 10.1 Inch,1024x600 Pels LED |
| Cover System: | Press Rod Type Heat Cover | Certificates: | CE ISO9001 |
| Heating System: | Peltier Heating Units | Application: | Lab |
| High Light: | 384 well plate gradient thermal cycler PCR,gradient thermal cycler PCR ISO9001,ISO9001 RT PCR thermal cycler |
||

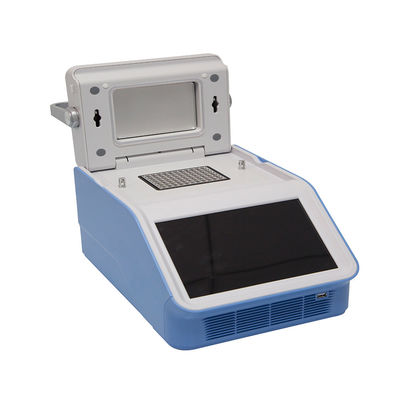

Thermal Cycler Reaserch Use University Labs Medical Biology Laboratory Pcr Machins
Description:
ForeAmp series thermal cycler has Android operation system and 10.1 inch capacitive touch screen. Operation is very smooth and simple. Air channel is in front and back and it allows machine placed side by side. Self-adapting pressure hot lid makes closing lid and tightening lid in one step. It has long service life peltier heating units and max. ramping rate is 8℃/S and cycle times is more than 1000,000. Wifi unit is built in and user can control many units of PCR through mobile App.
Feature
1. Long service life Peltier heating units.
2. Reinforced aluminum module with anodizing technology can keep rapid heating-conducting property and have enough corrosion resistance.
3. High heating and cooling rate, max. Ramping rate 8 ℃/s, can save your precious time.
4. Self-adapting pressure hot lid makes closing lid and tightening lid in one step.
5. Air channel is in front and back and it allows machine placed side by side.
6. It has Android operation system and 10.1 inch capacitive touch screen. It has graphical menu navigation interface and operation is very simple.
7. Built-in 11 standard program file template, can quickly edit the required files.
8. The running program and left time can be displayed in real time , allow to edit file when program is running.
9. One-click quick incubation function can meet experiment’s needs such as denaturation, enzyme cutting/enzyme-link and ELISA.
10. Hot lid temperature and hot lid work mode can be set to meet different experiment’s need.
11. Automatic restart after power failure. When power is restored it can continue to run unfinished program.
12. Support USB to store and copy PCR data, user can control PCR by USB mouse.
13. Update software by USB and LAN.
14. WIFI module built-in, one unit can control multiple PCR machine through computer or cell phone with internet connection.
15. Email notification after experiment is over.
Specification
Model No. | ForeAmp- | ForeAmp- | ForeAmp-SN695(384) | ForeAmpe-SD696 | ForeAmp- | ||
Capacity | 96×0.2ml | 96×0.2ml | 384 well | 6×16×0.2ml | 96×0.2ml | ||
Tube | 0.2ml tube, 8 strips, | 0.2ml tube, 8 strips, | 384 well plate | 0.2ml tube, 8 strips, | |||
Temperature Range | 0-105℃ | ||||||
MAX. Ramp Rate | 5℃/s | 6℃/s | 5℃/s | 6℃/s | 8℃/s | ||
Uniformity | ≤±0.2℃ | ||||||
Accuracy | ≤±0.1℃ | ||||||
Display Resolution | 0.1℃ | ||||||
Temperature Control | BlockTube | ||||||
| 0.1-5℃ | 0.1-6℃ | 0.1-5℃ | 0.1-6℃ | 0.1-8℃ | ||
Gradient Temp. Range | 30-105℃ |
| |||||
Gradient Type | Nolinear Gradient | Dynamic Gradient | Two-Dimensional Gradient | ||||
Gradient Spread | 1-42℃ | six zone,each zone is 0.1-5℃. | Horizontal:1-30℃ | ||||
Hot Lid Temperature | 30-115℃ | ||||||
Number of Programs | 20000 +(USB FLASH) | ||||||
Max. No. of Step | 30 | 40 | |||||
Max. No. of Cycle | 100 | ||||||
Time Increment/Decrement | 1 Sec - 600 Sec | ||||||
Temp. Increment/Decrement | 0.1-10.0℃ | ||||||
Pause Function | Yes | ||||||
Auto Data Protection | Yes | ||||||
Hold at 4℃ | Forever | ||||||
Touchdown Function | Yes | ||||||
Long PCR Function | Yes | ||||||
Language | English | ||||||
Computer Software | Yes | ||||||
Mobile phone APP | Yes | ||||||
LCD | 10.1 inch,1024×600 pels | ||||||
Communication | USB2.0 , WIFI | ||||||
Dimensions | 385mm× 270mm× 255mm (L×W×H) | ||||||
Weight | 10kg | 10kg | 17kg | ||||
Power Supply | 100-240VAC , | 100-240VAC , | 100-240VAC , | ||||
Applications:
PCR amplification instrument, also known as PCR gene amplification instrument, PCR nucleic acid amplification instrument, polymerase chain reaction nucleic acid amplification instrument, is a kind of amplification of specific DNA using PCR (Polymerase chain reaction, polymerase chain reaction) technology Instruments and equipment are widely used in medical and biological laboratories, for example, to determine whether a sample will show a genetic disease map, diagnosis of infectious diseases, gene replication, and paternity testing.
