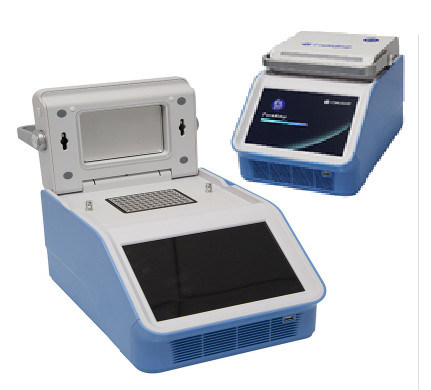

ISO9001 Automated PCR Machine RT PCR Test Machine Peltier heating units

ISO9001 Automated PCR Machine RT PCR Test Machine Peltier heating units

  • ISO9001 Automated PCR Machine RT PCR Test Machine Peltier heating units
ISO9001 Automated PCR Machine RT PCR Test Machine Peltier heating units
Product Details:
Place of Origin: China
Brand Name: ForeAmp
Certification: CE ISO
Model Number: SN695 SN696 SD696 SD698
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: 3000
Packaging Details: Packing in safe carton box
Delivery Time: 5-8 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 2000 sets per year
Contact Now
Detailed Product Description
Product Name: Thermal Cycler Pcr Machines Material: Die-casting Aluminum Housing
Input Voltage: AC100~240V Input Options Operating System: Android
WIFI Module: Built-in WIFI Module Screen: 10.1 Inch,1024x600 Pels LED
Cover System: Press Rod Type Heat Cover Certificates: CE ISO9001
Heating System: Peltier Heating Units Application: Lab
High Light:

PCR machine ISO9001

,

rt pcr test machine ISO9001

,

ISO9001 automated pcr machine

Thermal Cycler Reaserch Use University Labs Medical Biology Laboratory Pcr Machins



Description:



ForeAmp series thermal cycler has Android operation system and 10.1 inch capacitive touch screen. Operation is very smooth and simple. Air channel is in front and back and it allows machine placed side by side. Self-adapting pressure hot lid makes closing lid and tightening lid in one step. It has long service life peltier heating units and max. ramping rate is 8℃/S and cycle times is more than 1000,000. Wifi unit is built in and user can control many units of PCR through mobile App.

Feature

1. Peltier heating device with long service life.
2. Reinforced aluminum module with anodizing technology, which can maintain fast heat conduction performance and have sufficient corrosion resistance.
3. High heating and cooling rate, the maximum punching rate is 8℃/s, which can save your precious time.
4. Adaptive pressure heating lid, one step in place.
5. The air channel is at the front and the back, which allows the machines to be placed side by side.
6. It has an Android operating system and a 10.1-inch capacitive touch screen. It has a graphical menu navigation interface and is very easy to operate.
7. Built-in 11 standard program file templates, you can quickly edit the required files.
8. It can display the running program and the remaining time in real time, and allows editing files while the program is running.
9. The one-button fast incubation function can meet the needs of denaturation, enzyme digestion/enzyme linkage, ELISA and other experiments.
10. The temperature of the heating lid and the working mode of the heating lid can be set to meet the needs of different experiments.
11. Automatically restart after power off. When power is restored, it can continue running unfinished programs.
12. Support USB to store and copy PCR data, and users can control PCR through USB mouse.
13. Update software via USB and LAN.
14. With a built-in WIFI module, one unit can control multiple PCR machines through a computer or mobile phone connected to the Internet.
15. Email notification after the experiment is over.

Specification

Model No.

ForeAmp-
SN695

ForeAmp-
SN696

ForeAmp-SN695(384)

ForeAmpe-SD696

ForeAmp-
ST698

Capacity

96×0.2ml

96×0.2ml

384 well

6×16×0.2ml

96×0.2ml

Tube

0.2ml tube, 8 strips,
Full 96 wells plate,
Half skirt96 wells plate,


0.2ml tube, 8 strips,
Half skirt96 wells plate,
No skirt 96 wells plate

384 well plate

0.2ml tube, 8 strips,
Half skirt 96 wells plate,


Temperature Range

0-105℃

MAX. Ramp Rate

5℃/s

6℃/s

5℃/s

6℃/s

8℃/s

Uniformity

≤±0.2℃

Accuracy

≤±0.1℃

Display Resolution

0.1℃

Temperature Control

BlockTube


Ramping Rate Adjustable

0.1-5℃

0.1-6℃

0.1-5℃

0.1-6℃

0.1-8℃

Gradient Temp. Range

30-105℃



Gradient Type

Nolinear Gradient

Dynamic Gradient

Two-Dimensional Gradient

Gradient Spread

1-42℃


six zone,each zone is 0.1-5℃.

Horizontal:1-30℃
Vertical:1-24℃

Hot Lid Temperature

30-115℃

Number of Programs

20000 +(USB FLASH)

Max. No. of Step

30

40

Max. No. of Cycle

100

Time Increment/Decrement

1 Sec - 600 Sec

Temp. Increment/Decrement

0.1-10.0℃

Pause Function

Yes

Auto Data Protection

Yes

Hold at 4℃

Forever

Touchdown Function

Yes

Long PCR Function

Yes

Language

English

Computer Software

Yes

Mobile phone APP

Yes

LCD

10.1 inch,1024×600 pels

Communication

USB2.0 , WIFI

Dimensions

385mm× 270mm× 255mm (L×W×H)

Weight

10kg

10kg

17kg

Power Supply

100-240VAC ,
50/60Hz , 600 W

100-240VAC ,
50/60Hz , 600 W

100-240VAC ,
50/60Hz , 1200 W



Applications:
PCR amplification instrument, also known as PCR gene amplification instrument, PCR nucleic acid amplification instrument, polymerase chain reaction nucleic acid amplification instrument, is a kind of PCR (polymerase chain reaction, polymerase chain reaction) technology expansion Instruments and devices that augment specific DNA are widely used in medical and biological laboratories, for example, to determine whether a sample will display a genetic disease profile, infectious disease diagnosis, gene replication, and paternity testing.
