Foregene Co., Ltd.
CHINA FOREGENE,WORLD'S FOREGENE!
 |
| Place of Origin: | China |
| Brand Name: | ForeAmp |
| Certification: | CE ISO |
| Model Number: | SN696 |
| Minimum Order Quantity: | 1 sets |
|---|---|
| Price: | 3000 |
| Packaging Details: | Packing in safe carton box |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 2000 sets per year |
| Product Name: | Gradient Thermal Cycler ForeAmp-SN696 China Laboratory PCR Machines Lab Equipment Gradient Thermocycler | Material: | Die-casting Aluminum Housing |
|---|---|---|---|
| Input Voltage: | AC100~240V Input Options | Operating System: | Android |
| WIFI Module: | Built-in WIFI Module | Screen: | 10.1 Inch,1024x600 Pels LED |
| Cover System: | Press Rod Type Heat Cover | Certificates: | CE ISO9001 |
| Heating System: | Peltier Heating Units | Application: | Lab |
| High Light: | Thermocycler portable PCR machine,PCR machines 96×0.2ml,Thermocycler digital pcr machine |
||

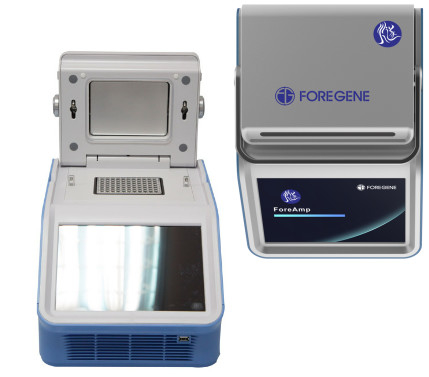

Gradient Thermal Cycler ForeAmp-SN696 China Laboratory PCR machines Lab Equipment gradient thermocycler
Description:
ForeAmp Series Thermal Cyclers
1. Android OS and 10.1 inch capacitive touch screen. operation very smoothly easy to understand
The air channels are at the front and the rear, which allows the machines to be placed side by side.
Adaptive pressure heated lid makes closing and tightening the lid a one-step process.
It has a long-life Peltier heating device with a maximum heating rate of 8°C/s and a cycle time of more than 1,000,000.
With built-in Wi-Fi units, users can control many PCR units through a mobile app.
Feature
♦Running program and remaining time can be displayed in real time, allowing editing files while the program is running.
♦ One-button fast incubation function can meet the needs of experiments such as denaturation, enzyme digestion/enzyme linkage, ELISA, etc.
♦ High temperature and cold grid, the highest speed is 8℃/s, which can save your downtime.
♦ Adaptive pressure heating makes it cool and tightens in one step.
♦ Air channels are located at the front and rear and installed on the China side.
♦It is Android OS and 10.1 inch capacitive touch screen. It has a graphical navigation interface and is very easy to operate.
♦ Built-in 11 standard program file templates, which can be quickly edited
needed file.
Specification
|
Model No. |
ForeAmp- |
ForeAmp- |
ForeAmp-SN695(384) |
ForeAmpe-SD696 |
ForeAmp- |
||
|
Capacity |
96×0.2ml |
96×0.2ml |
384 well |
6×16×0.2ml |
96×0.2ml |
||
|
Tube |
0.2ml tube, 8 strips, |
0.2ml tube, 8 strips, |
384 well plate |
0.2ml tube, 8 strips, |
|||
|
Temperature Range |
0-105℃ |
||||||
|
MAX. Ramp Rate |
5℃/s |
6℃/s |
5℃/s |
6℃/s |
8℃/s |
||
|
Uniformity |
≤±0.2℃ |
||||||
|
Accuracy |
≤±0.1℃ |
||||||
|
Display Resolution |
0.1℃ |
||||||
|
Temperature Control |
BlockTube |
||||||
|
|
0.1-5℃ |
0.1-6℃ |
0.1-5℃ |
0.1-6℃ |
0.1-8℃ |
||
|
Gradient Temp. Range |
30-105℃ |
|
|||||
|
Gradient Type |
Nolinear Gradient |
Dynamic Gradient |
Two-Dimensional Gradient |
||||
|
Gradient Spread |
1-42℃ |
six zone,each zone is 0.1-5℃. |
Horizontal:1-30℃ |
||||
|
Hot Lid Temperature |
30-115℃ |
||||||
|
Number of Programs |
20000 +(USB FLASH) |
||||||
|
Max. No. of Step |
30 |
40 |
|||||
|
Max. No. of Cycle |
100 |
||||||
|
Time Increment/Decrement |
1 Sec - 600 Sec |
||||||
|
Temp. Increment/Decrement |
0.1-10.0℃ |
||||||
|
Pause Function |
Yes |
||||||
|
Auto Data Protection |
Yes |
||||||
|
Hold at 4℃ |
Forever |
||||||
|
Touchdown Function |
Yes |
||||||
|
Long PCR Function |
Yes |
||||||
|
Language |
English |
||||||
|
Computer Software |
Yes |
||||||
|
Mobile phone APP |
Yes |
||||||
|
LCD |
10.1 inch,1024×600 pels |
||||||
|
Communication |
USB2.0 , WIFI |
||||||
|
Dimensions |
385mm× 270mm× 255mm (L×W×H) |
||||||
|
Weight |
10kg |
10kg |
17kg |
||||
|
Power Supply |
100-240VAC , |
100-240VAC , |
100-240VAC , |
||||
Background
PCR (Polymerase Chain Reaction) uses DNA to become single-stranded when denatured at a high temperature of 95°C in vitro. At low temperature (often around 60°C), the primers and the single-strand are combined according to the principle of base complementary pairing, and then adjusted. The temperature reaches the optimum reaction temperature of DNA polymerase (about 72°C), and DNA polymerase synthesizes complementary strands along the direction of phosphate to five-carbon sugar (5'-3'). The PCR instrument based on polymerase is actually a temperature control device, which can be well controlled between the denaturation temperature, the renaturation temperature and the extension temperature.
