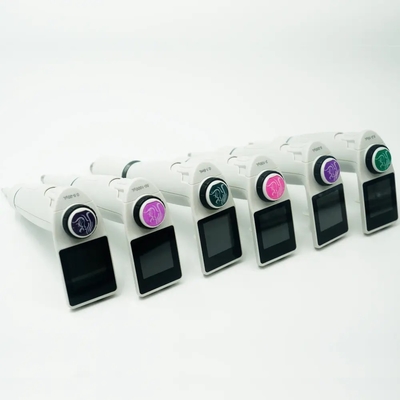

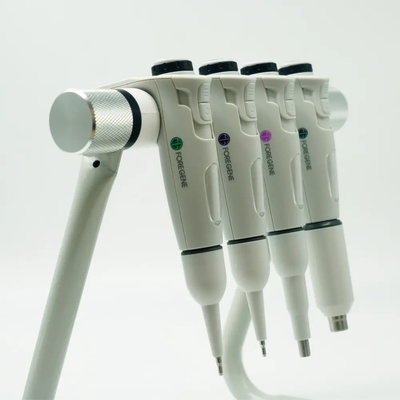

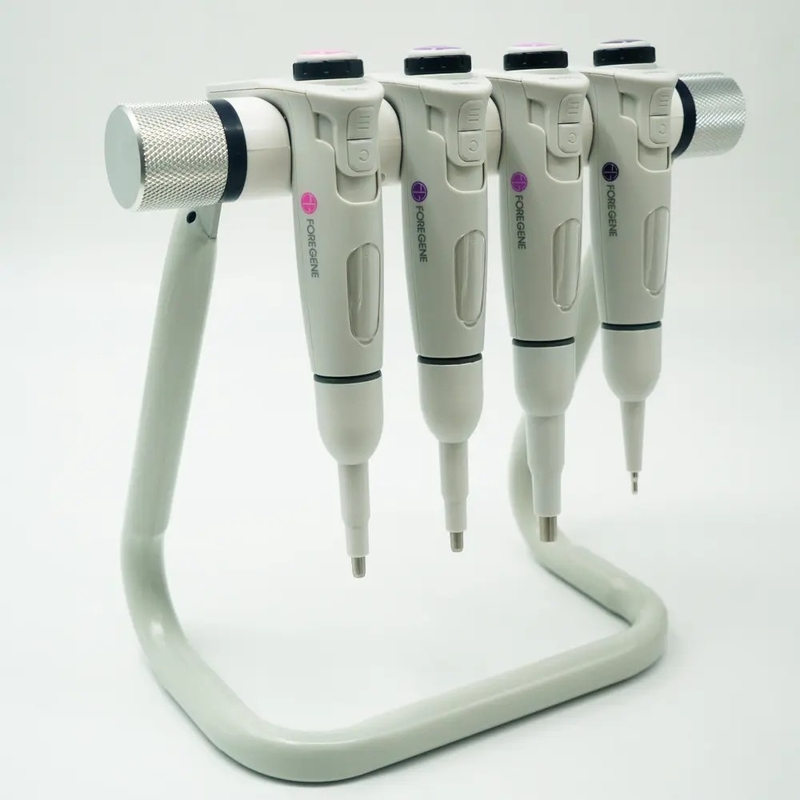

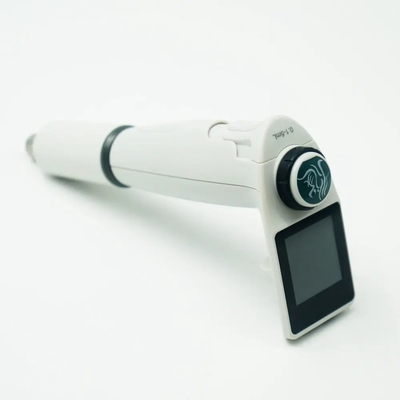

Light Lab Use Single Channel Auto Electronic Pipette 0.5ul-20ul

Small Exquisite And Light Lab Use Single Channel Auto Electronic Pipette 0.5ul-20ul


Description:

This Small exquisite and light lab use single channel Auto electronic pipette is an electric pipette newly developed by Foregene. It operates according to the principle of air displacement. It can safely, accurately and efficiently pipette liquids. It is an ideal pipetting tool for experimental operations. The flexible knob can quickly set pipetting parameters and select functions. The large 1.44-inch color screen clearly displays various pipetting information. The simplified menu and the adjustment knob can quickly switch multiple pipetting combinations. 7 specifications of single-channel electric pipettes are available.

Description of  pipetting mode:
Automatic pipetting mode, manual pipetting mode and multi-stage aspiration mode,Multiple dispensing mode.

Description of operations:

Automatic pipette
Automatic pipette mode display(the factory initial display)

Turn the adjustment wheel to set the volume


Press the pipetting key to aspirate the liquid
The press the pipetting key to discharge the liquid, and go back to the initial display(depending on actual selection.)
Description of other operations:

1: Reverse pipetting: program especially for pipetting liquids with a high viscosity or vapor pressure, or that tend to foam.
Turn the adjustment wheel to set the volume a little bit more than the desired volume → press the pipetting key to aspirate the liquid → turn the adjustment wheel to set the desired liquid volume → press the pipetting key to discharge the desired volume → press the pipetting key to discharge the residual liquid→ complete the pipetting, automatic memory this operation, and go back to the start state. Then no setting is required for the second operation.
2: Mixing mode: program for mixing liquids. the sample is repeatedly aspirated and discharged with 5 times.
Turn the adjustment wheel to set the desired volume→ press the pipetting key to aspirate → press and holding the pipetting key to automatically aspirate and discharge the liquid for 5 times → complete the mixing, and go back to the start state.
3: Manual mode: long-time aspiration by holding, and short-time aspirate by pressing.
In the non-sucked state under the automatic pipetting mode, press the function key can enter the manual mode, and in any state under the manual mode display, press the function key to exit the manual mode.
4: Quantitative suction in manual mode.
In the non-sucked state of the manual mode, turn the adjustment wheel to set the desired volume → short press or hold the pipetting key to aspirate the liquid to the setted volume → short press or hold the pipetting key to dispense the liquid to the zero point and the display reminas that PIP mode → press the pipetting key again to blow-out the residual liquid → complete the pipetting, automatic memory this operation, and go
back to the start state. Then no setting is required for the second operation.
5: Dispensing after aspirate in manual mode: the volume of samples is unknown, dispensing the liquid after aspirate.
In the manual mode, short press or hold the pipetting key to aspirate the liquid until it get you desired volume → press the function key to exit the manual mode → turn the adjustment wheel to get into the dispensing mode → then dispensing the liquid [while the dispensing volume can be changed every step] and complete the pipetting.
6: Aspirate measurement mode: the volume of samples is unknown, aspirate and measurement.
In the manual mode, short press or hold the pipetting key to aspirate the liquid until it get you desired volume → the display shows the amount volume of the aspirated and complete the measurement
7: Gel loading mode: loading at very slow speed.
"zero" level of the dispensing speed is designed to the gel loading.
8: Titration mode: drip mode at low dose.
In the manual mode, short press the pipetting key to dispense after aspiration, and then you can titrate.
9: Multi-stage unequal aspirate and multi-stage
unequal dispensing.
10: Multi-stage equal sampling and multi-stage
equal dispensing.
11: Multi-stage equal aspirate and multi-stage
unequal dispensing.
12: Multi-stage unequal aspirate and multi-stage
equal dispensing.
