Place of Origin: | China |
Brand Name: | ForeAmp |
Certification: | CE ISO |
Model Number: | SN695 SN696 SD696 SD698 |
Minimum Order Quantity: | 1 sets |
---|---|
Price: | 3000 |
Packaging Details: | Packing in safe carton box |
Delivery Time: | 5-8 days |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 2000 sets per year |
Product Name: | Thermal Cycler Pcr Machines | Material: | Die-casting Aluminum Housing |
---|---|---|---|
Input Voltage: | AC100~240V Input Options | Operating System: | Android |
WIFI Module: | Built-in WIFI Module | Screen: | 10.1 Inch,1024x600 Pels LED |
Cover System: | Press Rod Type Heat Cover | Certificates: | CE ISO9001 |
Heating System: | Peltier Heating Units | Application: | Lab |
High Light: | 10.1 inch LED PCR machines,10.1 inch LED thermocycler PCR machine,thermocycler PCR machine 96×0.2ml |

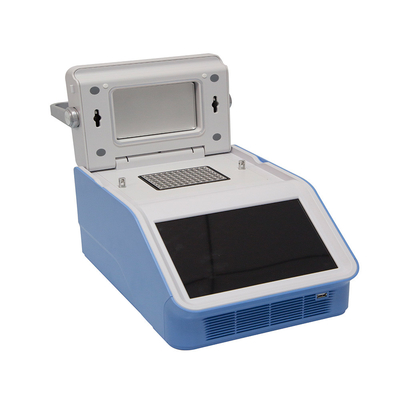

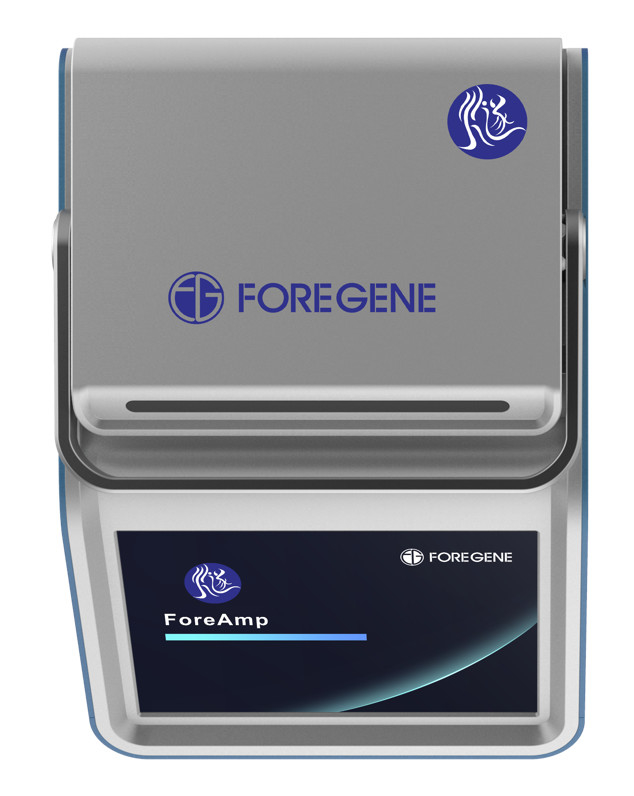

Laboratory Instrument PCR machines China 96-PCR Test Kit LED Digital Display
Description:
ForeAmp series thermal cycler has
1.Android operation system and 10.1 inch capacitive touch screen .
2.Operation is very smooth and simple .
3.Air channel is in front and back and it allows machine placed side by side.
4.Self-adapting pressure hot lid makes closing lid and tightening lid in one step .
5.It has long service life peltier heating units and max. ramping rate is 8℃/s and cycle time is more than 1000,000 .
6.Wifi unit is built in and user can control many units of PCR through mobile App .
Feature
♦ Self-adaptingpressurehotlidmakesclosinglidand tighteninglidinonestep.
♦ Airchannelisinfrontandbackanditallowsmachineplaced sidebyside .
♦IthasAndroidoperationsystemand10 . 1inchcapacitive touchscreen.Ithasgraphicalmenunavigationinterfaceand operationisverysimple .
♦Built- in11standardprogramfiletemplate,canquicklyedit
therequiredfiles .
♦The running program and left time can be displayed in real time , allow to edit file when program is running .
♦ One-click quick incubation function can meet experiment’s needs such as denaturation , enzyme cutting/enzyme- link and ELISA
♦ Hotlidtemperatureandhotlidworkmodecanbesetto meetdifferentexperiment’sneed .
Specification
Model No. |
ForeAmp- |
ForeAmp- |
ForeAmp-SN695(384) |
ForeAmpe-SD696 |
ForeAmp- |
||
Capacity |
96×0.2ml |
96×0.2ml |
384 well |
6×16×0.2ml |
96×0.2ml |
||
Tube |
0.2ml tube, 8 strips, |
0.2ml tube, 8 strips, |
384 well plate |
0.2ml tube, 8 strips, |
|||
Temperature Range |
0-105℃ |
||||||
MAX. Ramp Rate |
5℃/s |
6℃/s |
5℃/s |
6℃/s |
8℃/s |
||
Uniformity |
≤±0.2℃ |
||||||
Accuracy |
≤±0.1℃ |
||||||
Display Resolution |
0.1℃ |
||||||
Temperature Control |
BlockTube |
||||||
|
0.1-5℃ |
0.1-6℃ |
0.1-5℃ |
0.1-6℃ |
0.1-8℃ |
||
Gradient Temp. Range |
30-105℃ |
|
|||||
Gradient Type |
Nolinear Gradient |
Dynamic Gradient |
Two-Dimensional Gradient |
||||
Gradient Spread |
1-42℃ |
six zone,each zone is 0.1-5℃. |
Horizontal:1-30℃ |
||||
Hot Lid Temperature |
30-115℃ |
||||||
Number of Programs |
20000 +(USB FLASH) |
||||||
Max. No. of Step |
30 |
40 |
|||||
Max. No. of Cycle |
100 |
||||||
Time Increment/Decrement |
1 Sec - 600 Sec |
||||||
Temp. Increment/Decrement |
0.1-10.0℃ |
||||||
Pause Function |
Yes |
||||||
Auto Data Protection |
Yes |
||||||
Hold at 4℃ |
Forever |
||||||
Touchdown Function |
Yes |
||||||
Long PCR Function |
Yes |
||||||
Language |
English |
||||||
Computer Software |
Yes |
||||||
Mobile phone APP |
Yes |
||||||
LCD |
10.1 inch,1024×600 pels |
||||||
Communication |
USB2.0 , WIFI |
||||||
Dimensions |
385mm× 270mm× 255mm (L×W×H) |
||||||
Weight |
10kg |
10kg |
17kg |
||||
Power Supply |
100-240VAC , |
100-240VAC , |
100-240VAC , |
Application
1.Gene amplification for research and clinical use
2.Qualitative PCR gene amplification
3.Fluorescent/Enzyme-Free Endpoint Quantitative DNA Gene Amplification
4.Gene amplification for other gene analysis applications such as microarrays
5.Suitable for various PCR kits at home and abroad for infectious diseases (various hepatitis viruses, Mycobacterium tuberculosis, STD sexually transmitted diseases, prenatal and postnatal care, mycoplasma, chlamydia, parasites, etc.), tumors (P53, Helicobacter pylori, etc.), scientific research (Genetic identification, bacterial virus typing, etc.)
